MYS Split Parking Cooler
| ★TOP | ★BACK |

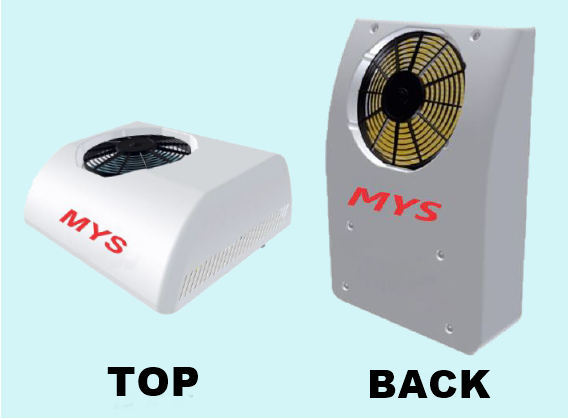

| DIMENSIONS: 196x646x434 mm | DIMENSIONS: 696x463x187.5 mm |
| WEIGHT: 18.4kg | WEIGHT: 18.8kg |

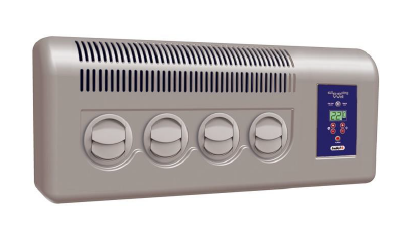

Indoor Unit
☆ DIMENSIONS: 260x626x108 mm
☆ WEIGHT: 4.3kg
►Only MYS, the pipeline of indoor unit NOT exposed
When the condenser works, the pipeline will not cause moisture or leaking in the installation. The special design of the blower, the fan inside the vehicle is extremely silent.
The digital control panel allows the user to set the temperature and ventilation. With TURBO or ECON mode to achieve the best efficiency, automatic control of power consumption and performance based on external temperature and internal selected temperature.
►Anti-tilt protectionThe digital control panel allows the user to set the temperature and ventilation. With TURBO or ECON mode to achieve the best efficiency, automatic control of power consumption and performance based on external temperature and internal selected temperature.
This function is a standard feature which installed on the rooftop. When the tilt exceeds 25°, the system will automatically shut down to ensure vehicle safety.
Top Compressor in Europe
Top Compressor in Europe

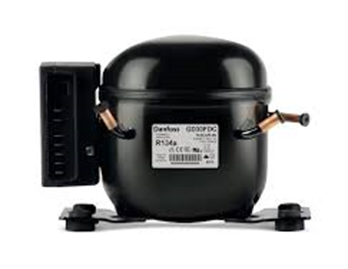

New Danfoss compressor BD350GH
◆ Patent adjustable compressor system
◆ Provide the highest efficiency and lowest level
◆ Provide better performance, safety, and excellent comfort
◆ In Europe, Danfoss is one of the brand used by OEM
◆ Provide better performance, safety, and excellent comfort
◆ In Europe, Danfoss is one of the brand used by OEM

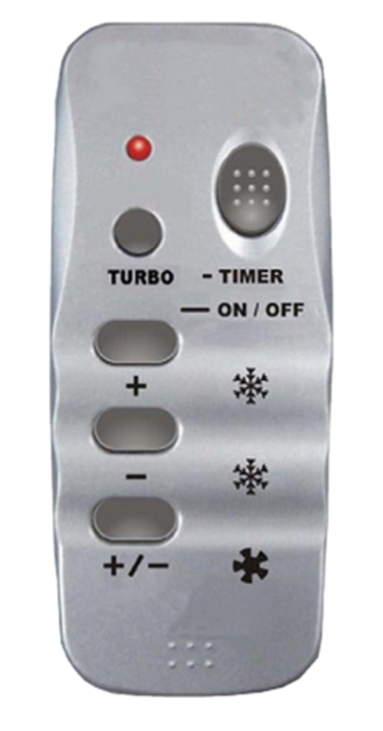

Remote Control
▲ Remote control operation function
▲ Six-stage wind speed adjustment, independent air supply function setting,
more comfortable in winter and mountainous areas
SPECIFICATION
★VOLTAGE: 24 DC
★REFRIGERANT: R134A
★TOP：
COOLING POWER: max 3250BTU/h (950W)、min 2240BTU/h (650W)
RATED CURRENT: 14.5 Amp/h max ~ 7.5 Amp/h min
★BACK：
COOLING POWER: max 5460BTU/h (1600W)、min 3750BTU/h (1100W)
RATED CURRENT: 21 Amp/h max ~ 11.5 Amp/h min
▲ Six-stage wind speed adjustment, independent air supply function setting,
more comfortable in winter and mountainous areas
SPECIFICATION
★VOLTAGE: 24 DC
★REFRIGERANT: R134A
★TOP：
COOLING POWER: max 3250BTU/h (950W)、min 2240BTU/h (650W)
RATED CURRENT: 14.5 Amp/h max ~ 7.5 Amp/h min
★BACK：
COOLING POWER: max 5460BTU/h (1600W)、min 3750BTU/h (1100W)
RATED CURRENT: 21 Amp/h max ~ 11.5 Amp/h min
Security
• Battery protection
• Anti-tilt protection
• Low voltage safety protection
• Anti-tilt protection
• Low voltage safety protection
Professional Team Strictly Controls the Installation Quality
Safety Construction Environment
☆Installation example→please go to "PERFORMANCE" to watch☆
